Basic Tooling

The Pieh Tool Crouchet Fly Press Tooling System

Our Fly Press Tooling System was designed my John Crouchet exclusively for the Pieh Legacy Collection.  (DVD5 How to use a Fly Press by John Crouchet) John has many years of fly press experience and designed this system to make the fly press an invaluable tool for any professional blacksmith shop. This tooling is necessary in order to use a press for blacksmithing. Most of our tooling is made from S7 tool steel. Made in USA!

!

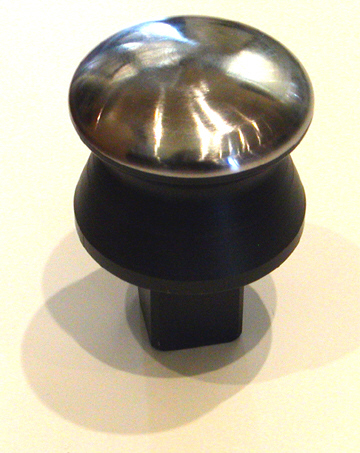

Pieh Tool Mushroom
!

Pieh Legacy Collection!

Shank fits 1" hardie holes.

This tool is used for many things such as making vein's on leaves. You would use this tool underneath the leaf to provide a curved working surface while using the veining chisel or ball punch. The piece can be rocked on the mushroom to create curved lines.

The mushroom is beautifully dressed and is 2 3/8 inch diameter by 2 inches high (OAL 3 1/2 inches).

Can be used in an anvil or a fly press. Made from low carbon steel and is soft (not hardened) but can be hardened with Cherry Red. (Item #CHR-1) We left it soft so that the veining chisels or ball punches would not be damaged. Make in USA for the Pieh Legacy Collection of tools.

Weight: 2 pounds

Item #: PTCFP-M

Pieh Tool Crouchet Ball Punch
!
Pieh Legacy Collection

Ball tool fits in our 1" tooling extension designed for use at a fly press. The ball is S7 and is tig welded to 1 inch round shank.  Made in USA.

Item #: BP1000-FP

Pieh Tool Crouchet Fly Press Fuller Set
!
Pieh Legacy Collection

Fullers make reducing or stretching stock almost effortless. Can also be used to make shoulders or other indentations with a fly press. S7 Tool steel construction with tig welded back. This is a top and bottom tool set.  Top and bottom tool both have 1 inch shanks. Made in USA.

Item #: PTFPF-3/8

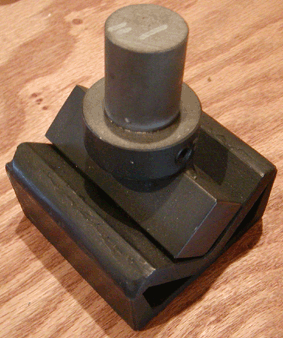

Pieh Tool Fly Press Bending Die Forcer
!
Pieh Legacy Collection

Use this tool with your fly press to make right angle bends from hot or cold steel easily. Set includes top and bottom. Top has a 1 inch round shank. Constructed from mild steel. Made in USA.

Item #: PTFPBDF

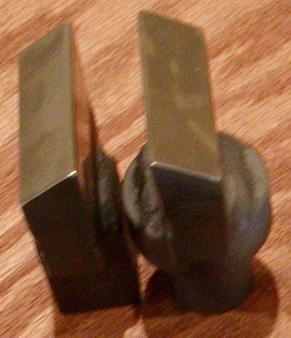

Pieh Tool Fly Press Side Butcher Set
!
Pieh Legacy Collection

Used mainly for shoulders or tenon work at the fly press. Top (round) and bottom (square) tools have one inch shanks. Made from S7 and tig welded to base shanks. Made in USA.

Item #: PTFPSBT

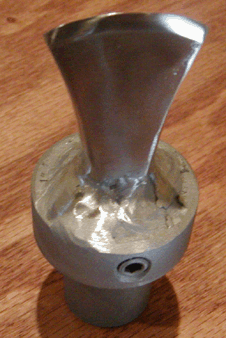

Pieh Tool Fly Press Veining Chisel
!
Pieh Legacy Collection

Use with your fly press to make veining in leaves, to mark stock for twists, or for decoration. S7 tool steel construction tig welded to 1 inch round base shank.   Make in USA.

Crouchet Fly Press Tooling Extensions
!
Pieh Legacy Collection

The tooling extension holds tooling for the fly press. The set screw makes tool release fast and easy.  The size equates to the hole (female) inside the extension.  All shanks are 1 inch.  We offer 4 sizes.

Other shank sizes available by special order. Made in USA.

Item #: PTTE12, PTTE58, PTTE34, PTTE1

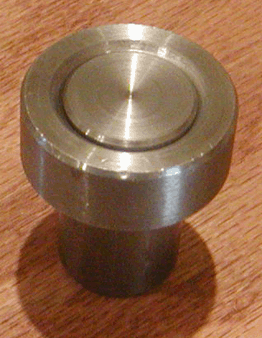

Crouchet Fly Press Collar for Tooling
!
Pieh Legacy Collection

Optional tooling for making your own own tooling. 2 1/2 inches long shank base. You will need to drill your own hole if needed.

Item #: PTC1x2.5

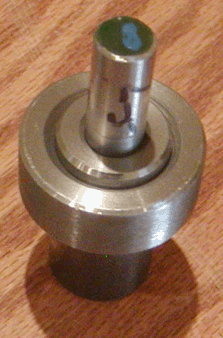

Crouchet Fly Press Collar for Tooling, Pre-Drilled
!
Pieh Legacy Collection

1 inch shank base for making your own tooling. 2 1/2 inches long shank base, with drilled 1/2 inch hole. Tool is ready for you to weld in chisels, punches and other tooling made my you.  Comes with small round 1/2 inch blank of S7 tool steel.

Item #: PTC1x2.5D.5

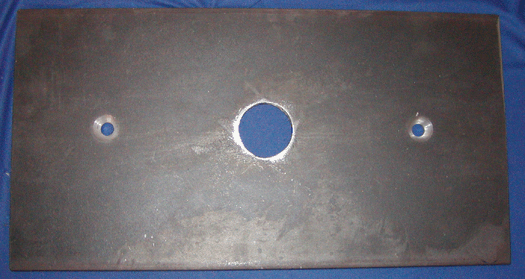

Crouchet Fly Press Clamping Plate
!

Pieh Legacy Collection

Designed for our #4, #5, #6 fly presses and comes with tee nut, cap and screws (not shown). Bolt holes are countersunk.

The clamping plate allows you to clamp your projects or tooling down while keeping the bottom access hole free for use with a hardy bolster. This allows you to use the press to hold bottom tools as well. Made in USA.

3/8 x 10" x 19"

Item #: PTCP4/5/6

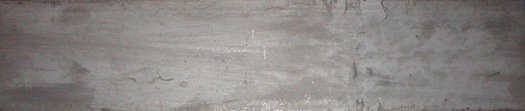

Pieh Tool Crouchet Fly Press Guided Bolster (for #4 - #6 Presses)
!
Pieh Legacy Collection

3/8" thick x 4" wide x 22" long

Designed for our #4, #5, #6 Fly Presses

The guided bolster comes with plate and metal guide. Clamping this to a clamping plate allows for working with longer pieces of steel and keeping  your project straight. Made in USA.

Item #: PTGB38-19

Crouchet Fly Press Hardie Bolster (for #4 - #6 Presses)
!
Pieh Legacy Collection

1" square hardy hole; hole offset to 45 degrees.  Plate is 19" long

Designed for our #4, #5, #6 Fly  Presses

The hardy bolster allows you to use bottom tools such as a hardy, or our fuller set (which has a top and bottom tool) etc. It is best to clamp to a clamping plate before using.  Made in USA.

Item #: PTHB1
