Miscellaneous Tools
We offer a variety of tools that will fit in the hardy hole of an anvil or for use in a vise or tooling swage block. These tools can also be used with a fly press if you have a bottom holder such as our hardie bolster plate.
Our tooling comes in shaft sizes to fit 3/4", 7/8", 1" and 1 1/4" hardy holes.
!
Click to see more images of the process.

PTC Victory Forge Butt Tool

Pieh Legacy Collection!

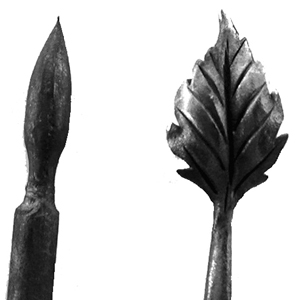

Produce easy beautiful leaves when used together with the Victory Forge Butt Tool.  First forge your leaf, perhaps with our leaf blank swage., then lay and center bottom side of leaf over the Leaf Sink Tool. Use a veining chisel, and make the vein in your leaf by sinking in the crease of the tool.

(It is recommended to hold the Leaf Sinking Tool with a Hold Down by utilizing your round pritchel hole in your anvil.)

Heat the piece back up and turn over. Lay the piece in wood, such as a stump, and use the Butt Tool over the raised crease you just made. Strike the Butt Tool with a hammer sinking the leaf into the wood.

If you would like more instruction on making leaves consider taking our 3 day blacksmithing class.

Used for forging leaves.

Item #: VFBTool

Click to see more images of the process.

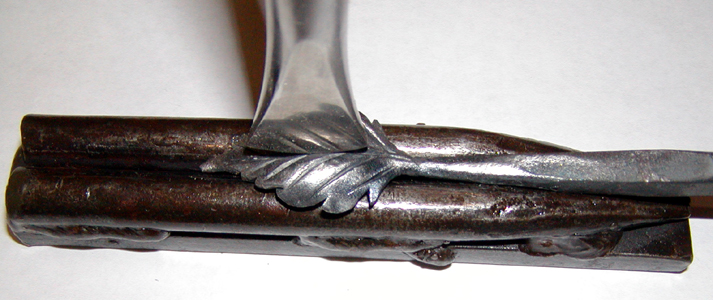

PTC Victory Forge Leaf Sinking Tool

Pieh Legacy Collection!

Produce easy beautiful leaves when used together with the Victory Forge Butt Tool.  First forge your leaf, perhaps with our leaf blank swage., then lay and center bottom side of leaf over the Leaf Sink Tool. Use a veining chisel, and make the vein in your leaf by sinking in the crease of the tool.

(It is recommended to hold the Leaf Sinking Tool with a Hold Down by utilizing your round pritchel hole in your anvil.)

Heat the piece back up and turn over. Lay the piece in wood, such as a stump, and use the Butt Tool over the raised crease you just made. Strike the Butt Tool with a hammer sinking the leaf into the wood.

If you would like more instruction on making leaves consider taking our 3 day blacksmithing class.

Item #: VFLTool

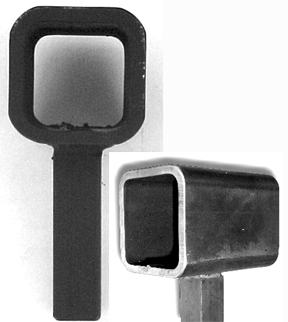

Pieh Tool Anvil Fork Saddle

Pieh Legacy Collection!

All steel construction.  The Pieh Tool Anvil Saddle works great for scroll work and other fine detail work that you can’t get around the horn. This tool is ideal for forging barbecue forks!  Also makes a great replacement for a worn out anvil horn. Shank is 2 inches long.   Surface can treated with Kasenit to make a tougher working surface. Made in USA.

Dimensions of Saddle: 2 in. OD x 1 1/2 in. ID x 3 in Length

OAL is 5"

Weight  3 pounds

Available in 4 size shanks.

Item #: PTAS750, PTAS875, PTAS100 and PTAS114

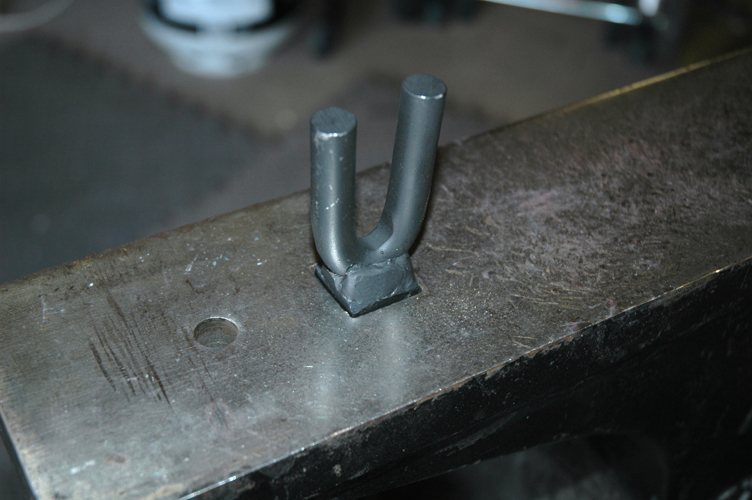

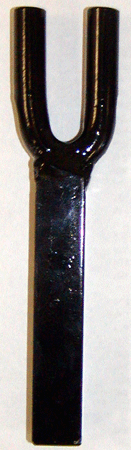

Pieh Tool Bending/Turning Forks

Pieh Legacy Collection!

Steel turning or bending fork with welded shank to fit anvil hardy hole, vise or stake plate.  Made in USA.

Available in 4 size shanks and two styles.  The large style is great for larger stock.

 Style  OAL     Fork distance
 Regular    5 1/2"  5/8"
 Large   7 1/2"  1 1/4"



Item #: TF34, TF78, TF1, TF114 and TFL100


Pieh Tool Mushroom

Pieh Legacy Collection!

Shank fits 1" hardie holes.

This tool is used for many things such as making vein's on leaves. You would use this tool underneath the leaf to provide a curved working surface while using the veining chisel or ball punch. The piece can be rocked on the mushroom to create curved lines.

The mushroom is beautifully dressed and is 2 3/8 inch diameter by 2 inches high (OAL 3 1/2 inches).

Can be used in an anvil or a fly press. Made from low carbon steel and is soft (not hardened) but can be hardened with Kasenit. (item #KSNT1-1) We left it soft so that the veining chisels or ball punches would not be damaged. Make in USA for the Pieh Legacy Collection of tools.

Weight: 2 pounds

Item #: PTCFP-M


Pieh Tool Smoosh O Matic

Pieh Legacy Collection!

This tool will prove very handy in your shop! It fits in the anvil hardy hold to help you make tenons and more. It comes with 2 sets of dies: a flat top and bottom die set; and a side butcher top and bottom die set. This is a simple convenient tool to have at the anvil! Made exclusively for Pieh Tool for the Pieh Legacy Collection. Made in the USA.

Shank fits 1" hardie holes.

Item #: SMOOSH


Victory Forge Guilotine Fuller

Pieh Legacy Collection!

Guilotine fuller fits in your anvils hardy hole. This is the same fuller we use in our blacksmithing classes. Very useful when fullering on leaf stems etc.

Item #: VFGF58, FVGF78, VFGF34 & VFGF1


Victory Forge Guilotine Combo Fuller

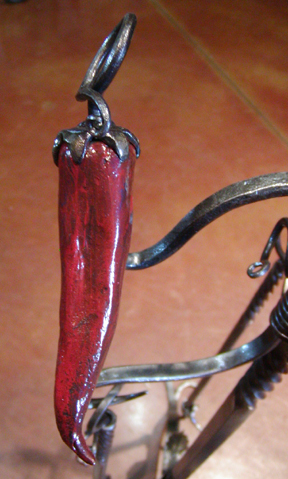

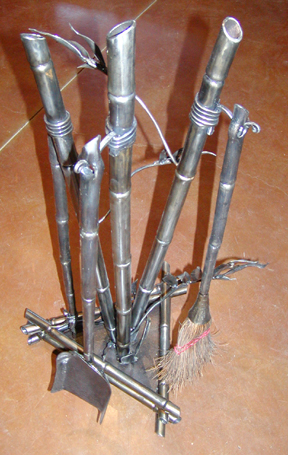

The Guilotine Combo Fuller fits in your anvils hardy hole. Becuase of the double fullering you can use this for making chile peppers and making bamboo as well as for fullering leaf stems.



 Note above two projects created with the combo fuller.

 Item #: VFGCF58, FVGCF78, VFGCF34 & VFGCF1


Pieh Tool Ball Hardy

Pieh Legacy Collection!

Shank fits 1" hardie holes.

May be used in anvil hardy hole for forging or raising and at the fly press, vise etc. Made in USA

Item#: CDB1

Special Order Item!

Peddinghaus Bottom Anvil Block, 7/8 inch

2  x 2 in polished face. 7/8" shank fits in .hardy or swage block hole. For use with Peddinghaus set hammer 5052020000.

Weight: 1,200 grams   Shipping weight: 3 pounds

Item #: 5053010000
