Treadle Hammer & Dies
It is really important to know how to forge the work that a treadle or power hammer will do.  However, if you are forging a large number of pieces a treadle hammer or air hammer will offer consistency and save your arm!   Many blacksmiths end up with tendon issues.
!

The Mark In-Line Treadle Hammer
!

Used by Blacksmith's across the country, THE MARK In-Line Treadle Hammer offers the convenience of a foot-operated hammer with the added feature of a vertically aligned head assembly with hardy holes in the top and bottom plates to facilitate alignment of precision tooling.

Have both hands free to work and perform operations such as cut-off, embossing, upsetting, punching, edge trimming, fullering, stalking, riveting, extruding, and much more!

You control the hammer blows from a light tap for delicate work to heavy blows for moving large amounts of material.

SPECIFICATIONS:
Overall: 84" high, 32" deep, 17" wide, 5" x 6" hammer table at 38" floor height
Head Weight: 65 Lbs.
Head Stroke: 12-13"
Shipping Weight: 375 lbs

$50 crating fee will be added to shipping.

Item #: MMTH

-------------------------------------

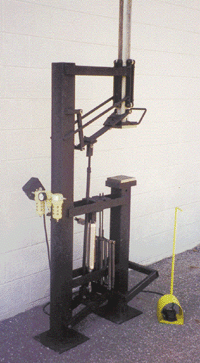

Treadle Hammer with Power Pack Installed

"THE MARK" POWER PACK (shown installed at right) is an OPTIONAL air operated assembly that easily mounts on "THE MARK" In-Line Treadle Hammer. A foot pedal takes the place of the treadle pedal. Simply attach two clamp assemblies and mount the control box unit on the hammer back frame, plug into a 110-volt and a minimum 40 PSI continuous duty air compressor and you are ready to hammer!  You may use, at a minimum, a 10 gallon capacity tank. Pancake style will work when you are traveling with the hammer. The foot pedal can be moved around for your convenience in use and you can still use the treadle pedal without disconnecting the power and air supply.

THE POWER PACK CAN BE ADDED ON AT ANY TIME!



Item #: MMTH-PP

Treadle Hammer Power Pack

!
Power pack for the Treadle Hammer, when purchased at a later date from Treadle Hammer purchase.
Item : MMTH-PP

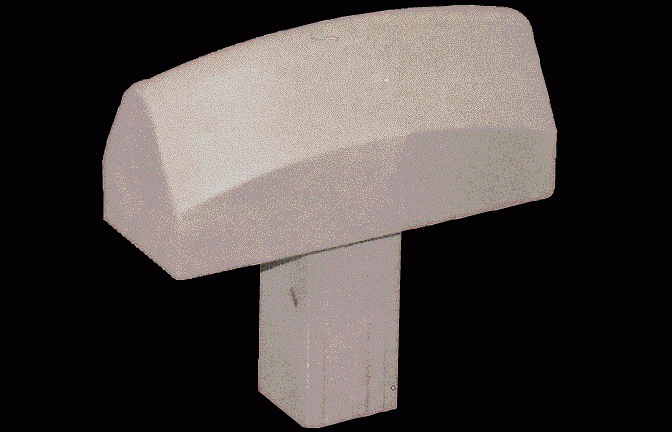

Pein Anvil Dies
!

Dies are made from 4140 Alloy Steel with a 1" hardy shank

Set of two dies

Dimensions: 1-1/2 x 2 x 4".

Item #: MM-PAD

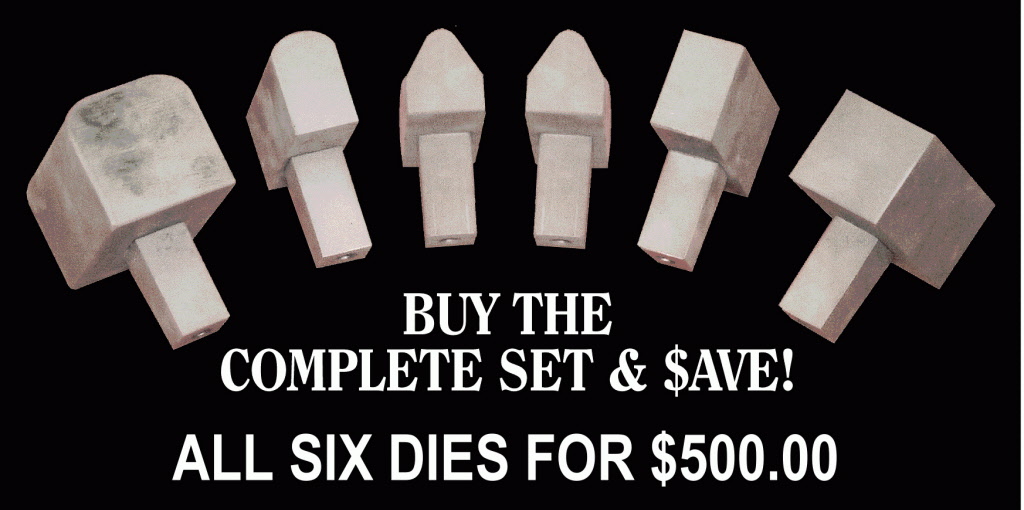

Treadle Hammer Die Set
!
All dies are made from 4140 Alloy Steel and have a 1" Hardy.

Set includes:
Standard Flat Dies - Small and Large
Radius Side Dies - Small and Large
Pein Anvil Dies - 2

Item #: MM-DieSet6
