Pieh Tool

Tinsmith Stakes

Premium-quality forming and rasing stakes are designed for blacksmiths, sheet metal workers, coppersmiths, jewelers and autobody workers. These stakes have gorgeous blemish-free polished surfaces; stakes are forged and tempered for excellent performance and longevity. They are carefully engineered to reduce strain-the softer inner body absorbs impact through the hardened surface.

All Peddinghaus stakes are special order.

Peddinghaus metalforming tools are designed to fit into the Peddinghaus Working Block
Item #: 0106010000 located in our Stake Holder folder.

Peddinghaus stakes are made in Germany, the Pieh Tool stakes in the USA.

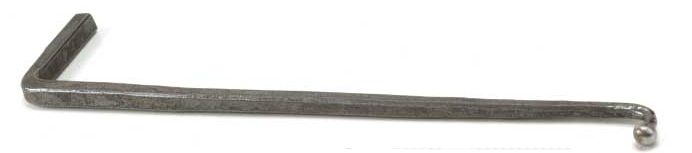

Pieh Tool Snarling Iron

The Pieh Tool Snarling Irons are hand forged from Spring Steel.

Used for reaching into vessels during production or repair.

Made in USA.

Small: 1/4" ball x 14" long

Medium: 1/2" ball x 14" long

Large: 3/4" ball x 14" long

Item #: SN1/4TM, SN1/2TM, SN3/4TM

Pieh Tool Sinusoidal Stake, Small Wave

Synclastic: "Curved in all directions towards the same point" Anticlastic or Anti-Clastic: "Similar to synclastic but produces a concave curve instead of a convex curve".

Used in the process called anticlastic raising. This is the 8" long (small length) Sinusoidal Stake.

Steel Sinusoidal stakes are commonly used with plastic or nylon hammers like our "Bossing Mallets or Pimentel Raising hammers". For a textbook that covers this work, please see "Form Emphasis" by Heiki Seppa (BK239)".

Made in USA

Item #: SS1TM

Pieh Tool Sinusoidal Stake, Medium Wave

Synclastic: "Curved in all directions towards the same point" Anticlastic or Anti-Clastic: "Similar to synclastic but produces a concave curve instead of a convex curve".

Used in the process called anticlastic raising. This is the 11" long (medium length) Sinusoidal Stake.

Made in USA

Item #: SS2TM

Pieh Tool Sinusoidal Stake, Large Wave

Synclastic: "Curved in all directions towards the same point" Anticlastic or Anti-Clastic: "Similar to synclastic but produces a concave curve instead of a convex curve".

Used in the process called anticlastic raising. This is the 16" long (large length) Sinusoidal Stake.

Made in USA

Item #: SS3TM

Pieh Tool Bick Iron

Our Bick Iron is drop forged and hardened. It is 8" long x 1" wide.

It is classically shaped, with a flat elongated triangle shape on one side with a tapered rounded end on the other.

For use in a standard stake holder.

Made in USA

Item #: BI1TM

Pieh Tool Ball Stake, 2-3/8 in.

Our Ball Stake is 2-3/8" and are about 7" tall. It is machined of 1018 Cold Rolled Steel Bar.

For use in a Pexto Style Stake Plate.

Made in USA

Item #: BS3TM

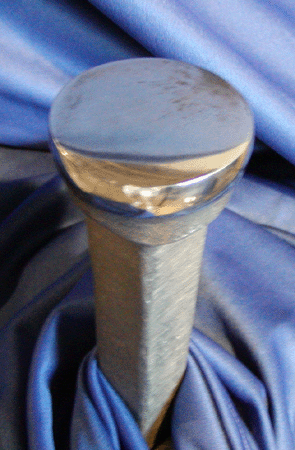

Flat Top Stake

Stake has sharp edge and is highly polished. 1-7/8 in dia. Excellent quality. Fits in anvil hardy or vise. Made in USA.

Item #: 074-06

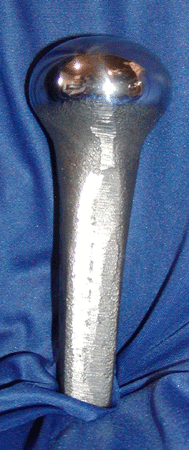

Mushroom Stake

Stake has is highly polished. 2-1/4 in. dia. Excellent quality. Fits in anvil hardy or vise. Made in USA.

Item #: 074-09

Pieh Tool Mushroom

Pieh Legacy Collection!

Shank fits 1" hardie holes.

This tool is used for many things such as making vein's on leaves. You would use this tool underneath the leaf to provide a curved working surface while using the veining chisel or ball punch. The piece can be rocked on the mushroom to create curved lines.

The mushroom is beautifully dressed and is 2 3/8 inch diameter by 2 inches high (OAL 3 1/2 inches).

Can be used in an anvil or a fly press. Made from low carbon steel and is soft (not hardened) but can be hardened with Cherry Red. (Item #CHR-1) We left it soft so that the veining chisels or ball punches would not be damaged. Make in USA for the Pieh Legacy Collection of tools.

Weight: 2 pounds

Item #: PTCFP-M
