Pieh Tool

Raising Hammers

The Peddinghaus hammers we have listed below are made in Germany for working jewelers and metalsmiths. Heads are forged for superior durability. All meet ISO and DIN standards. They are made of high grade steel and are the most reliable hammers you'll find anywhere. All hammers feature finely balanced heads for an easy accurate swing. Handles are smooth and of ash or hickory for a comfortable grip.

Pimentel UHMB Raising Hammer, Small

This material, UHMB (Ultrahigh Molecular Weight Polyethylene), is much better than Delrin or metal and is easier on your joints. This nonporous material won't mar and is easy to clean.

Made for the Pieh Legacy Collection. Made in USA.

What is 'Pimentel' Raising? This raising technique was introduced by our Raisng instructor, Bonnie McKenna Harvey. Dave Pimentel was her professor at ASU who had researched and invented hammers and stakes made of a special kind of plastic.

Item #: PRHS

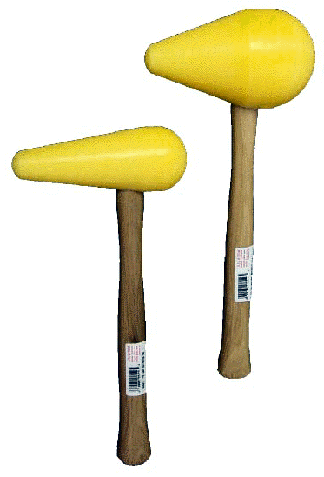

Bossing Mallets

Plastic mallets are made from ultra-high-molecular-weight plastic. This nonporous material won't mar and is easy to clean. The mallet has excellent impact strength and is useful in applications such as Jewelry and Leather Crafts, Blacksmithing, Repousse and other light metal work. This mallet is commonly used in the raising technique.

Item #: 15008, 15009, 15010

Peddinghaus Double Faced Polishing Hammer, 400 gr

14 oz

This is one of our most popular style Peddinghaus raising hammers. Polishing hammers have beautifully polished bowed face(s). One is high bowed.

Wt. Gr	A, mm	B, mm	C, mm
400	118	32	32

Item #: 0063020000

Peddinghaus Single Face Polishing Hammer, 400 gr

14 oz

This polishing hammer has one beautifully polished high bowed face.

Wt. Gr	A, mm	B, mm
400	82	34

Item #: 0069020000

Peddinghaus Polishing Hammer

This is our most popular style Peddinghaus raising hammer. Polishing hammers have beautifully polished face(s).

1 high bowed face and 1 flat face

Wt. Gr	A, mm	B, mm	C, mm
250	104	24	24
400	113	32	32
750	130	37	37

Item #: 0062020250, 0062020400, 0062020750

Peddinghaus Shrinking Hammer, 300 gr

The Peddinghaus shrinking hammer does what the name implies. Using this hammer allows you to reduce a stretched area or make a larger area less then the metals original surface area. Perfect for making vessels or bowls or on auto bodies. Heads are forged for superior durability.

11 oz

1 flat faced, 1 bowed, fine polished

Wt. Gr	A, mm	B, mm	C, mm
300	125	23	24

Item #: 0050020300

Peddinghaus Shrinking Hammer (2 different faces)

1 Square and 1 Round Flat face, fine polished

Wt. Gr	A, mm	B, mm	C, mm
200	95	23	23
300	105	27	25

Item #: 0047020200, 0047020300

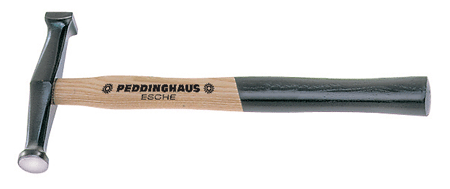

Peddinghaus Shrinking Hammer, 300 gr (2 different faces)

11 oz

1 Square and 1 Round Flat face, fine polished

Wt. Gr	A, mm	B, mm	C, mm
300	134	23	22

Item #: 0049020000

Peddinghaus Stretching Hammer

The Peddinghaus stretching hammer does what the name implies. Using this hammer allows you to really move the metal or expand its surface area. Perfect for making vessels or bowls or on auto bodies. Heads are forged for superior durability.

1 flat face, 1 light bowed, fine polished

Wt. Gr	A, mm	B, mm	C, mm
500	120	30	30
750	130	38	38

Item #: 0060020500 or 0060020750

Peddinghaus Grooving Hammer

The Peddinghaus grooving hammer is a very traditional style raising hammer. Heads are forged for superior durability.

Different faces, fine polished

Wt. Gr	A, mm	B, mm	C, mm
200	114	9	11
300	120	12	14

Item #: 0053020200, 0053020300

Peddinghaus Grooving Hammer, 300 gr (2 different faces)

Faces are perpendicular (cross pein and straight pein) to each other. Heads are forged for superior durability.

11 oz

Different faces, fine polished

Wt. Gr	A, mm	B, mm	C, mm
300	120	10	30

Item #: 0054020300

Peddinghaus Finishing and Grooving Hammer, 380 gr

Hammer has one round and one peined hooked face which is great for those hard to reach areas! This hammer is also a very popular auto body tool. Handle is hickory.

13.4 oz

Wt. Gr	A, mm	B, mm	C, mm
380	160	43	5

Item #: 0178030000

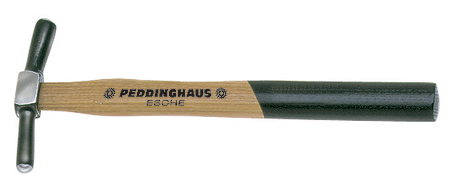

Peddinghaus Embossing Hammer, 100 gr

Embossing, also known as repousse, works metal from the back to create three dimensional forms. This a popular silversmiths hammer.

8 oz

2 different bowed faces, high polished finish

Wt. Gr	A, mm	B, mm	C, mm
100	105	14	11

Item #: 0401020000

Peddinghaus Embossing Hammer

Embossing, also known as repousse, works metal from the back to create three dimensional forms.

2 different high-bowed faces, fine polished.

Wt. Gr	A, mm	B, mm	C, mm
200	135	18	21
300	144	19	22
500	165	24	26

Item #: 0051020200, 0051020300 or 0051020500

Peddinghaus Bordering Hammer

Straight patterned dull-polished hammer.

Ideal for working in confined areas and for creating a finished edge.

Item #: 0057020200 and 0057020300

Peddinghaus Chasing Hammer, 300 gr

A multi-purpose hammer for chasing, peining, embossing, planishing, polishing and rasing. Well balanced hardwood handles offer comfort to allow more bounce-back which reduces strain.3

11 oz

2 different fine polished bowed faces

Wt. Gr	A, mm	B, mm	C, mm
300	136	16	20

Item #: 0052020000

Peddinghaus Chasing Hammer (Silversmiths), 400 gr

A multi-purpose hammer especially for silversmiths for chasing, peining, embossing, planishing, polishing and rasing. Well balanced hardwood handles offer comfort to allow more bounce-back which reduces strain.

14 oz

2 different polished slightly bowed faces
