Prices listed below are available for online orders only.  Items for pick up in our store will include added shipping charges.
  • Exclusive, high efficiency burners.
  • Push-button ignition.
  • Uniform Heat ... Self Regulating to 2350°.
  • Quick Recovery... heats and reheats metal very quickly.
  • Flexible ... rear bar stock door allows heating sections of bar stock. (Optional on some models)
  • No Blower Required.
  • Fuel of Choice ... comes fitted for propane, but may be configured for natural gas.
  • Transportable ... light weight and quick cooling.
  • Hose, gauge, and regulator included.
  • Quality assured ... we stand behind our products.

Please inquire should you need additional replacement parts!  888-743-4866

!

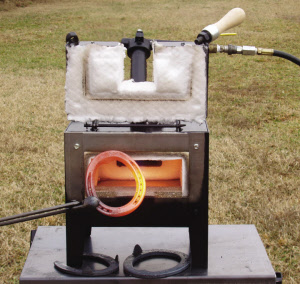

Whisper Baby Propane Gas Forge, 1 Burner with Rear Port

!

A handy gas forge for quick small jobs. Does not get hot enough to forge weld, however. This single burner forge will heat and reheat metal very quickly during work cycle. The heat remains 2350 degrees into corners with no cold spots. There is a push button spark ignition built right in. The bar stock door in rear allows heating sections of bar stock. Larger pieces may be heated with the front furnace door open.

Hot fit your keg shoes Red Hot. This forge works well for many blacksmithing procedures

Specifications:

  • 1 burner
  • Firebox: 3" H x 7" L x 6-1/2" Deep
  • Rear Bar Stock Port: 3" x 1-1/2"
  • Weight: 37 lbs

Item #: NCBABY

Deluxe Propane Gas Forge, 2 Burner with Rear Port

!

Hot fit your keg shoes Red Hot. This forge works well for many blacksmithing procedures

Specifications:
2 burner
Firebox: 3" H x 12" L x 6" Deep
Bar Stock Port: 3" x 1-1/2"
Weight: 47 lbs

Item #: NCWD-BD

Momma Propane Gas Forge, 2 Burner with Open End Ports

!

Forge has a solid insulated door which keeps the heat away from the user and the wind away from the fire box. End ports allows bar stock to be worked from either end or allows the user a 12" heat in the middle of the bar.

Perfect portable shoeing forge! Reaches weding temperatre in 3 minutes.

Will heat stacks of metal for repetition forging.

Specifications:
2 burner
Firebox: 3" H x 12" L x 6" Deep
Open ports on each end of forge: 3 " x 1-1/2"
Weight: 51 lbs

Item #: NCWM-OE

Low-Boy Propane Gas Forge, 3 Burner with Open End Ports

!
The Low Boy gas forge has an insulated door and 2 side bar stock ports. Has rapid heat recovery for quick turn around time. Ideal for competition shoe making and blacksmithing. Knifemakers - this is the one to use for damascus blade forging!

Specifications:

  • Firebox: 3"H x 12"L x 9" Deep
  • Side bar stock ports: 3" x 2"
  • Weight: 65 lbs

Item #: NCLB-OE

Deluxe Reliner Kits

!
Item #: 0135 or 0136

Momma Reliner Kits

!
Item #: 0137 or 0138

Low-Boy Reliner Kit

!

Item #: 0133

Low-Boy Door Reliner

!

Item #: 0133

Fisher High Pressure Regulator, 3 - 35 psi

!
This is a basic regulator with a handwheel adjustment. Its capacity is 750,000 BTU/HR  for propane based on inlet pressure 20 psig (1.4 bar) greater than outlet with 20% drop; Liquid capacity = 3.5 GPH. The Outlet Pressure Setting in Psig (bar) is 20 (1,4).  The Outlet Adjustment Range in Psig (bar) is 3 - 35 (0.21 - 2.4). The outlet pressure is permanently calibrated on the spring case allowing visual adjustment of the outlet pressure without having to use a pressure gauge. The unit is ideal for service where gauge breakage is a problem.

The 67C Series regulators are suitable for liquid or vapor service, the 67C Series high pressure (pounds to pounds) regulators are used on a variety of applications. All types within the Series have a 1/4" FNPT side outlet in which a pressure gauge (J500 Series) can be installed. The compact size of the 67C makes it particularly useful on installations where space is limited.

The regulator design utilizes precise guiding of the valve plug to provide close regulation and high performance.

Note: 67C Series regulators do not have an internal relief valve. These units should not be installed in fixed piping serving 1/2 psig (0.03 bar) appliance systems.

Mfg P/N: 67CH-743

Item #: PTREG
