Since 2002, the Pieh Legacy Collection brand has earned the respect and trust of blacksmiths, knifemakers and farriers. There is simply no stronger tool brand in our niche market. Go into just about any professional blacksmith shop or shoeing trailer and you'll see Pieh tools such as the Billy tongs, Victory Forge Spring Swages, leather aprons, punches or Bonnie hoof knives, Pieh hoof nippers proudly displayed for all to see.

   The tools & equipment we sell are a 'Top Shelf Standard' for professionals and recognized as top quality at truly fair prices. They simply define the professional blacksmith or farrier.



  Furthermore, we desire to excite and entice the minds of many with new tools & techniques and cross-industry concepts which we transform into exciting new products.

!

The Smithy's Gas Forge, 3 Burner
!
The Smithy's Forge: Click image for more views and to see the Forge Insert option.

Pieh Legacy Collection!

A gas forge for the Professional Blacksmiths Shop is finally available!

  1. Heats 1-1/4" barstock to a yellow heat with ease!
  2. Balanced Gas Mixture - only minimal scale!

Pieh Tool is excited to announce "The Smithy's" gas forge.  Our 3 burner forge was designed specifically for the artist blacksmith. It boasts the largest firebox available in the portable gas forge market!  You now have ample space to work with pieces of varying dimensions-awkward pieces can be worked that just won't fit in other forges!  Blacksmiths have been limited to forges designed for horseshoer's - with extremely small heating chambers - only 3" high, 6-9" deep and 12-13" wide.   Not any more!

This makes the perfect production shop forge because two smiths can work from both ends. The Smithy's Gas Forge has three doors that flip open allowing different access points.  The end doors also feature generous window ports for handling long pieces. Both end doors can remain open should you need the extra space while heating pieces with odd dimensions.  The front door also can be propped open.

The heating chamber height can be reduced easily by purchasing our Smithy Forge Insert.  It all depends on your needs. This will allow you to reduce your fuel consumption when the larger space is not needed.

And finally, this forge is Insulated! We have done our utmost to help conserve your fuel costs. Just check out the specification chart below regarding the insulation used in this unit. Relining is a simple task that takes only a few minutes and requires nothing more than a 5/16" wrench.

  • Professional Grade, Commercial Quality!
  • Internal Volume - 1288 cubic inches!
  • Fabricated with 12 gauge steel and a 5/16" frame
  • High efficiency burners - Machined burner bells
  • 3 Burners - Uniform heat
  • 2 Bar-stock ports
  • Heats very quickly - Reaches Welding Heat easily!
  • Flexible - 3 hinged doors and optional adjustable floor
  • Quick and easy relining
  • Venturi Style - No blower needed
  •  LP Gas
  • Portable
  • 9' Hose and Fisher Regulator, Pressure Gauge with POL included
  • Quality Guaranteed... Pieh Tool stands behind its products
  • Designed and fabricated in the USA

Operational Manual is included.

Forge can only be shipped motor freight, and arrives ready to use with only minor assembly required.

*OPTIONAL INSERT AVAILABLE!. When you have a smaller job the insert will reduce the forge height to 3 3/4". This will allow a faster heat and lower fuel usage. Gas pressure can be then be reduced to 12-15 psi.

The Pieh Tool Smithy's Forge Specifications

 Burners  3 Machined burner bells (One piece assembly)
 Open Ports  2 End Ports : 5 x 4 3/4"
 Hinged Doors  3 (all can be propped open)  Door handles are threaded to accept wood file handles
 Fuel Type  LP Gas
 Firebox Height  7"
 Firebox Depth  11 1/2"
 Firebox Width  16"
 Insulation - Doors  1", 8 lb density 2600 degree Cereblanket (Kao Wool)
 Insulation - Rear Wall  1" 2600 degree Ceramic Fiberboard with 1" Cereblanket behind it (2" total insulation)
 Insulation - Ceiling  2" 2600 degree Ceramic Fiberboard
 Insulation - Floor  3200 degree Dense Ceramic Firebrick
 Regulator  Fisher #67CH-743 (3-35 psi)
 Shut Off Valve  Needle Valve
 Hose Length   9' U/L
 Shell Dimensions  13 H x 15" D x 18 1/2" W    (25" H including burner assembly)
 Weight  75 lbs



 Item #: PTSPF-3, PTSPF-3Insert

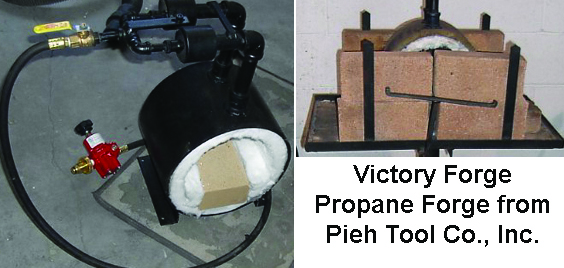

Victory Forge, 2 Burner Propane Gas Forge
!
We can build 3 burner forges and other size fire boxes for you by Special Order request!

Pieh Legacy Collection!

The problem with so many forges is the limitation of the fixed doors and the height of the fire box. Gordon Williams (Pieh Blacksmith School Instructor) designed this forge and uses them in all our classes. You have flexibility with the bricks used as doors....you can open or close them as much as you need to.

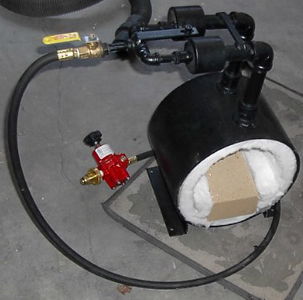

The forge is shown without bricks (except the bottom brick which we always include). Bricks make the cost of shipping much higher.  You can order with the 8 bricks for the doors should you choose-or you can purchase fire bricks at most Home Depot stores.

The forge comes with a Fisher Regulator (3-35 psi) and POL fitting, all the necesarry orifices, hoses and gate valve. It is ready to use!  The forge is lined with 1 inch thick 8 lb Kao Wool blanket.

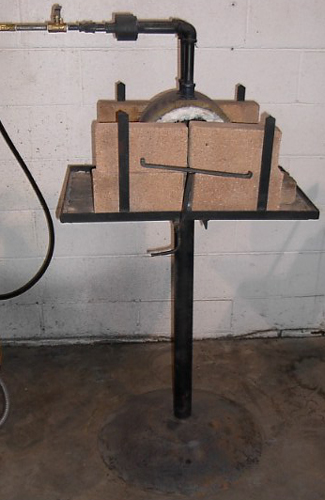

The forge does not come with a stand so you can put it on whatever you choose. We have shown a photo above with it on a stand to give you some ideas.

Fire Box Dimensions
11" O.D. and 10" I.D.
5" Working height from bottom brick to top (at lining)
Length: 8"
Burners: 2

Weight: 27 lbs
Weight with Bricks: 110 lbs

Made in USA

Item #: VFPF-C

Victory Forge, 2 Burner Propane Gas Forge Plan Drawing
!

Victory Forge forge plan drawings. If you would rather build your own forge these plans will help you. This is only a sketch diagram with no instructions. There are captions and measurements however. This will be emailed to you as a Adobe PDF. If you would like it printed and included with the rest of your order, please let us know at time of check out.

Plans are Copyrighted and should not be reproduced without our permission.

Item #: BK742
