Grinders, Buffers, Belt Sanders

As a distributor for Baldor, we can order any Baldor product for you! Please inquire via email or by phone: 928-554-0700 or toll free at 888-743-4866 (USA). In need of a repair part? We can handle that for you too! Generally we can ship your Baldor order within 1 day.

The TW-90 Knifemaker Grinder

The grinder is so quiet! Using it is an absolute pleasure!

Finally a grinder that meets the knife-making industry's unique but practical demands!

"Built for Knifemakers by a Knifemaker 15 year Veteran!"

The TW-90 is a combination grinder that can be easily switched between the vertical and horizontal position. Not only that, but it comes with a wide and useful variety of tool rests/grinding tables that can be interchanged and adjusted easily for multi-angle grinding as well as flat grinds.

TW90 Vertical/Horizontal Grinder

Features:

90 degree vertical to horizontal tilt
Frame: CNC Laser cut from ¼ inch steel plate, precision welded and powder coated.
Drive: Comes standard (only) with 2 horsepower Variable speed (via variable frequency drive). Power output is 2 hp on 220 single phase and 1 ½ hp when run with 110 single phase power
Tracking: Unique drive-wheel-tracking and specially domed wheels provide exceptionally smooth and stable tracking in both vertical and horizontal grinding positions
Wheels: CNC machined billet 6061 aircraft aluminum wheels with dual bearings, precision shafts and retainers.
Contact wheel -8” non-serrated polyurethane standard. (Toolbars are available to use Bader serrated contact wheels and small wheels)
Additional quick change tool-rests are available. Single plane quick change tool rests are extremely convenient for basic grinding operations
Small Wheel Attachment: Dual Fork quick change small wheel attachment that accepts Bader type small wheels.
Platten: 2 x 10” flat platen with 2 x 2” aluminum or polyurethane idler wheels
Tool Rest
Billet quick change tool rest provides multiple configurations for contact wheel and flat-platten in both vertical and horizontal positions.
Coming soon: Surface grinding attachment

TW90 Bladesmith Special Includes:

2 hp Motor (Inverter Rated)
Controller: KB Electronics Variable Frequency Drive (115/230 volt input)
8" Smooth Polyurethane Contact Wheel
10" Flat Platten
Dual Fork Quick Change Small Wheel Receiver (1/2" to 2" diameter wheels)

*Note: the small wheel reciever accepts Bader type small wheels (bearings located in wheel)
Vertical and Horizontal Toolrest System (Fully adjustable and quick change)

You Tube Videos on the grinder.

TW90 Grinder Introduction

Surface Grinding Attachment Introduction

Surface Grinding Attachment Part 2

TW-90's Contact Wheel Demonstration

TW-90 Flat Platten
TW90 Small Wheel Attachment

International Shipping must be quoted. Pick Up (FOB Casa Grande) incurs no shipping.

Item #: TW90

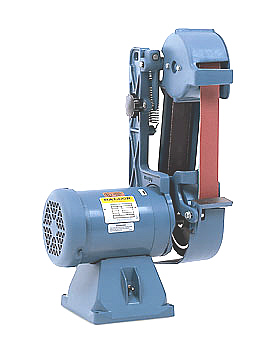

Baldor Industrial Belt Grinder, 115/230v

Baldor's Industrial Belt Grinders are used for fast material removal when shaping and deburing objects.

· Industrial stationary abrasive belt grinder

· 1 1/2 horsepower

· Single and three phase

· Belt size 2" x 48" - 80 grit

· SPECIAL ORDER ITEM

Specifications:

Horsepower: 1/4

Voltage: 115

Hertz: 60

Phase: 1

Amps: 2.8

RPM: 1800

Baldor Type: 3320C

Max Wheel Size: 6 inches

Wheel Width Min/Max: 0.50/0.75

Bearings: 6203

Shipping weight: 88 pounds

Item #: 2048-151D

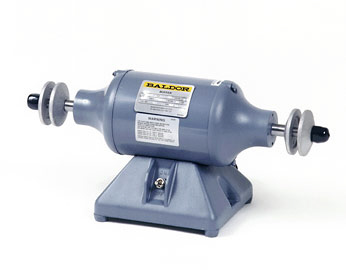

Baldor Industrial Buffer - 1/4 hp

Baldor Industrial Buffers are made to use with soft cloth buffing wheels and buffing compounds. Used for buffing and polishing objects to various degrees of luster. Includes flanges and nuts.
