Mankel

Some points about Mankel Gas Forges to consider.

  1. The liner in the round-bottomed Knifemaker's model will hold up to repeated use of flux and forge-welding heat, without requiring replacement.
  2. Liners in the other Mankel models hold up to regular use better than those of most of the other gas forges available.
  3. Adjustable air and gas flow allow for better burn and temperature control in various atmospheric conditions.
  4. Adjustable top height, using additional firebrick and longer threaded rods on all models allows for working larger stock.
  5. All 4 models of Mankel gas forge can be ordered for use with either propane or natural gas, and can be switched from one to the other at any time, with minimal equipment change.
  6. Any model of Mankel gas forge can be ordered with either an electric blower or with a 12-volt DC blower, for use where electricity is not available.
  7. The 2-burner models weigh 90-110 pounds, making them very portable. The 3-burner models weigh 130-170 pounds.
  8. We have spoken with multiple customers who have been using a Mankel gas forge for 35 years or more, without need of repair and are just now calling for replacement liners or other parts.

For questions on the Mankel gas forge, additional information, or advice on what model is right for you, please email or
call us 888-743-4866 with your questions.

All Mankel forges come with a 115 volt or 12 volt blower unless the product is identified as an atmospheric forge.

Be sure to tell us if you need a 12 volt blower, otherwise all forges are standard 115 volt.

!

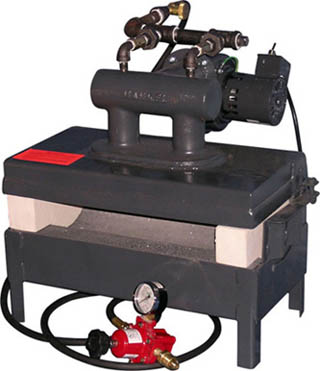

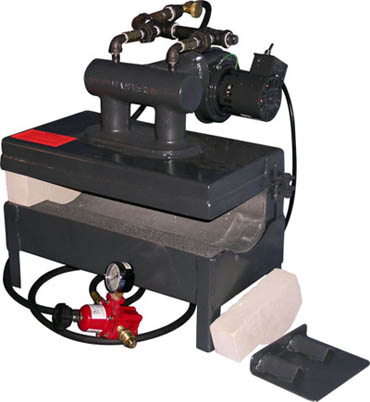

Mankel Knife Maker Gas Open End Forge - 2 Burner with Round Bottom
!
Free shipping if by UPS, in the continental USA when shipped FOB Michigan! Just pay applicable insurance and handling charges.

This forge is the same as the 3 burner knifemaker forge below, except this one has only 2 burners.

Item #: MKOE2RN  Natural Gas

Item #: MKOE2RP  Propane Gas

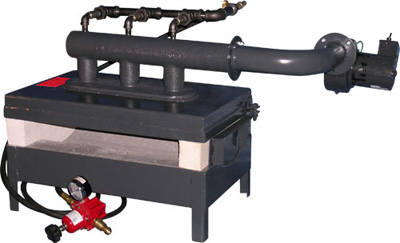

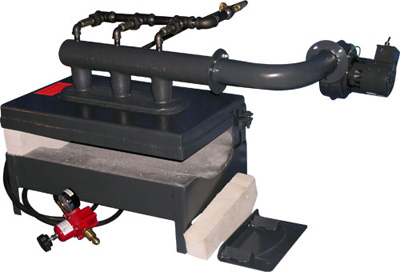

Mankel Knife Maker Gas Open End Forge - 3 Burner with Round Bottom
!
Free shipping by UPS in the continental USA when shipped FOB Michigan! Just pay applicable insurance and handling charges.

Hand built in Michigan, USA!

After the forge is preheated the three burners allow the temperature to reach 2600 degerees! By removing the side bricks, the forge can be open from 3 sides making this the most versatile of the Knifemaker Forges. The forge top is lined with Thermotect A Board and the bottom is poured refractory cement with radius round bottom on the floor of the hearth. Forge is fabricated of formed steel. It is tough-will take just about any abuse. It is also extremely easy to repair.

Supplied with:

  • Manifold, complete with orifices
  • Regulator with pressure guage
  • 8 ft. hose
  • 115 vol\t blower

Shipping Wegiht: 151 lbs.

Dimensions:

  • Outside Case: 20" x 12"
  • Opening: 16" wide x 2" high (with ends in)

Item #: MKO3RN Natural Gas

Item #: MKO3RP Propane Gas

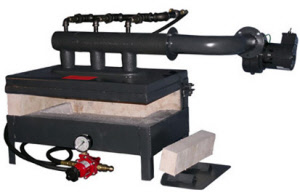

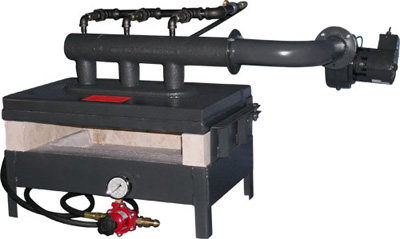

Mankel Blacksmith Gas Open End Forge - 3 Burner
!
Free shipping by UPS in the continental USA when shipped FOB Michigan! Just pay applicable insurance and handling charges.

Hand built in Michigan, USA!

After the forge is preheated the three burners allow the temperature to reach 2600 degerees! By removing the side bricks, the forge can be open from 3 sides. The forge top is lined with Thermotect A Board and the bottom is poured refractory cement with a flat bottom hearth. Forge is fabricated of formed steel. It is tough-will take just about any abuse. It is also extremely easy to repair.

Supplied with:

  • Manifold, complete with orifices
  • Regulator with pressure guage
  • 8 ft. hose
  • 115 vol\t blower

Shipping Wegiht: 151 lbs.

Dimensions:

  • Outside Case: 20" x 12"
  • Opening: 16" wide x 2" high (with ends in)

Item #: MOE3115P

Mankel Thermotect Board for closing front of Knifemaker Open End Forges ( 2x2.5x20 inch)
!

Item #: MBrick

Mankel Brass Orifice and Mixer

!

Propane or natural gas - please specify.

Item #: MOM

Fisher High Pressure Regulator, 3 - 35 psi
!
This is a basic regulator with a handwheel adjustment. Its capacity is 750,000 BTU/HR  for propane based on inlet pressure 20 psig (1.4 bar) greater than outlet with 20% drop; Liquid capacity = 3.5 GPH. The Outlet Pressure Setting in Psig (bar) is 20 (1,4).  The Outlet Adjustment Range in Psig (bar) is 3 - 35 (0.21 - 2.4). The outlet pressure is permanently calibrated on the spring case allowing visual adjustment of the outlet pressure without having to use a pressure gauge. The unit is ideal for service where gauge breakage is a problem.

The 67C Series regulators are suitable for liquid or vapor service, the 67C Series high pressure (pounds to pounds) regulators are used on a variety of applications. All types within the Series have a 1/4" FNPT side outlet in which a pressure gauge (J500 Series) can be installed. The compact size of the 67C makes it particularly useful on installations where space is limited.

The regulator design utilizes precise guiding of the valve plug to provide close regulation and high performance.

Note: 67C Series regulators do not have an internal relief valve. These units should not be installed in fixed piping serving 1/2 psig (0.03 bar) appliance systems.

Mfg P/N: 67CH-743

Item #: PTREG
